Linkage

Showing 1–12 of 21 results

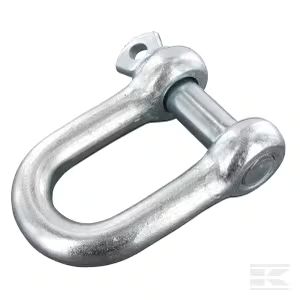

‘D’ Shackle – Zinc Plated
£0.30 – £4.07 (+ VAT)
Standard ‘D’ Shackle Size: 3/16″ 5/16″ 3/8″ 1/2″ 5/8″ 3/4″ Entry Width: 10mm 16mm 20mm 25mm 32mm 38mm Max Safety Load: 80Kg 200Kg 320Kg 520Kg 800Kg 1000Kg Breaking Load: 640Kg 1600Kg 2500Kg 4100Kg 6400Kg 8000Kg Please note: Not certified for lifting applications.

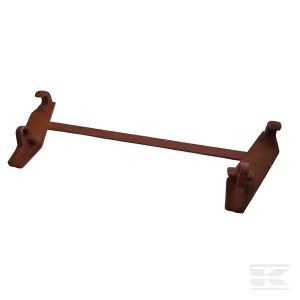

Adaptor Plate – Complete
£60.16 (+ VAT)
Provides a fast, easy and secure way to mount equipment on a quick change frame. Details: Weld-on plates are welded to the equipment and coupling hooks and loops are connected to the front loader quick change frame Good welding properties Steel version Euro bracket for quick change frame with European standard mounting Front loader shovels,…

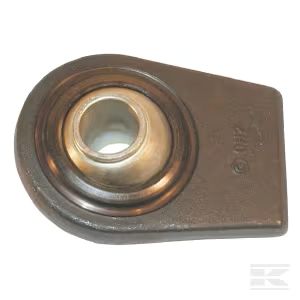

Ball End Flat 25.7mm – Category 2
£12.19 (+ VAT)
For lifting arms For intensive use Material 16 Mn Cr 5 (chrome-manganese steel, hardened) High-quality Category: 2 Hole diameter (D): 25.7mm Hole length (A): 51mm Hole centre to connection point distance (L): 78mm Connection width (H): 70mm Thickness (B): 18mm
Ball End Flat 28.8mm – Category 2
£15.72 (+ VAT)
For lifting arms For intensive use Material 16 Mn Cr 5 (chrome-manganese steel, hardened) High-quality Category: 2 Hole diameter (D): 28.8mm Hole length (A): 45mm Hole centre to connection point distance (L): 80mm Connection width (H): 70mm Thickness (B): 18mm Hole centre to the end radius (R): 44mm

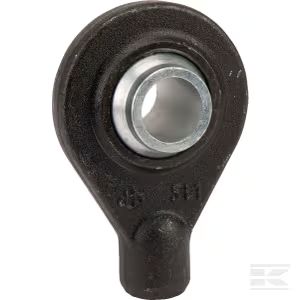

Ball End Round 25.7mm – Cat. 2
£17.21 (+ VAT)
For lifting arms and intensive use, high quality. Category: 2 Hole diameter: 25.4mm Hole length: 51mm Hole centre to connection point distance: 82mm Connection width: 30mm

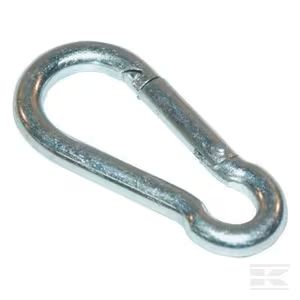

Carabiner 137x12mm – Zinc Plated
£2.06 (+ VAT)
Carabiner hook, zinc plated. Size opening hook: 19mm Max safety load: 450Kg Breaking load: 980Kg

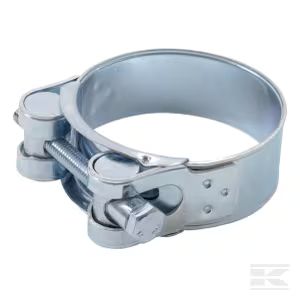

Hose Clamps
£2.07 – £3.17 (+ VAT)
For sealing large reinforced hoses in agriculture, used for watering and draining as well as sludge suction. Zinc-plated. Details: Hexagonal screw head With raised band edges Ordinary tools can be used for tightening Prevents the hose being cut Minimum working diameter: 98mm 104mm 162mm Maximum working diameter: 103mm 112mm 174mm Width: 24mm 24mm 26mm

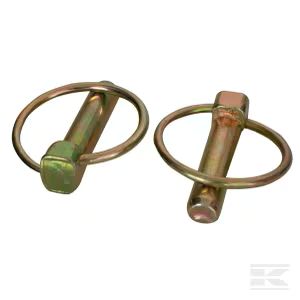

Linch Pins
£0.20 – £0.25 (+ VAT)
Steel linch pins for tractor linkage attachments, zinc plated. Pin diameter (A): 4.5mm 6mm 8mm 11mm Length (C): 36mm 45mm 45mm 45mm Working length (B): 32mm 36mm 36mm 36mm

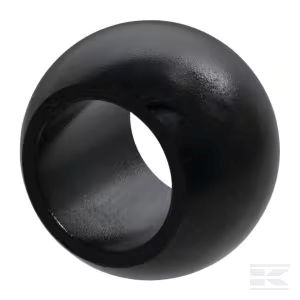

Lower Link Ball – Cat.1/1
£4.46 (+ VAT)
Lower link ball Cat.1/1, with an electrochemical coating. For the underside of tail hook systems. Details: Material 16 Mn Cr 5 (chrome-manganese steel, hardened) Six times more protection against external influences than conventionally galvanised spheres Category: 1 Ball outside diameter (D): 44mm Ball inside diameter (d): 22.4mm Length (a): 35mm

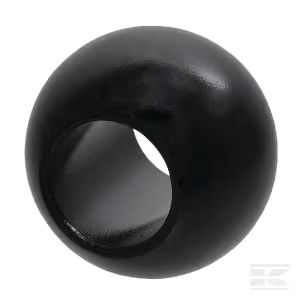

Lower Link Ball – Cat.2/2
£5.09 (+ VAT)
Lower link ball Cat.2/2, with an electrochemical coating. For the underside of tail hook systems. Details: Material 16 Mn Cr 5 (chrome-manganese steel, hardened) Six times more protection against external influences than conventionally galvanised spheres Category: 2 Ball outside diameter (D): 56mm Ball inside diameter (d): 28.4mm Length (a): 45mm

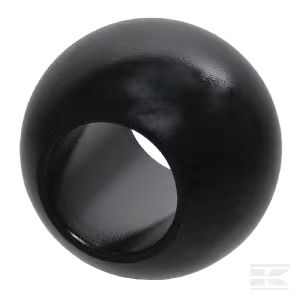

Lower Link Ball – Cat.3/2
£6.16 (+ VAT)
Lower link ball Cat.3/2, with an electrochemical coating. For the underside of tail hook systems. Details: Material 16 Mn Cr 5 (chrome-manganese steel, hardened) Six times more protection against external influences than conventionally galvanised spheres Category: 3/2 Ball outside diameter (D): 64mm Ball inside diameter (d): 28.4mm Length (a): 45mm
Lower Link Ball – Cat.3/3
£7.96 (+ VAT)
Lower link ball Cat.3/3, with an electrochemical coating. For the underside of tail hook systems. Details: Material 16 Mn Cr 5 (chrome-manganese steel, hardened) Six times more protection against external influences than conventionally galvanised spheres Category: 3 Ball outside diameter (D): 64mm Ball inside diameter (d): 37mm Length (a): 45mm

Order Enquiry
