Linkage

Showing 13–21 of 21 results

  • la944211kr

    Lower Link Ball with Guide Cone – Cat.1/1

    £15.18 (+ VAT)

    Lower link ball with guide cone, hook system lower link. Material 16 Mn Cr 5 (chrome-manganese steel, hardened) The ball was coated with e-coating and is therefore 6 times better protected than conventional galvanized balls Category: 1 Ball outside diameter (D): 44mm Ball inside diameter (d): 22.4mm Pin diameter (d1): 12mm

  • la956222kr

    Lower Link Ball with Guide Cone – Cat.2/2

    £10.67 (+ VAT)

    Lower link ball with guide cone, hook system lower link. Material 16 Mn Cr 5 (chrome-manganese steel, hardened) The ball was coated with e-coating and is therefore 6 times better protected than conventional galvanized balls Category: 2 Ball outside diameter (D): 56mm Ball inside diameter (d): 28.7mm Pin diameter (d1): 12mm

  • la964232kr

    Lower Link Ball with Guide Cone – Cat.3/2

    £12.96 (+ VAT)

    Lower link ball with guide cone, hook system lower link. Material 16 Mn Cr 5 (chrome-manganese steel, hardened) The ball was coated with e-coating and is therefore 6 times better protected than conventional galvanized balls Category: 3/2 Ball outside diameter (D): 64mm Ball inside diameter (d): 28.7mm Pin diameter (d1): 12mm

  • la964233kr

    Lower Link Ball with Guide Cone – Cat.3/3

    £10.70 (+ VAT)

    Lower link ball with guide cone, hook system lower link. Material 16 Mn Cr 5 (chrome-manganese steel, hardened) The ball was coated with e-coating and is therefore 6 times better protected than conventional galvanized balls Category: 3 Ball outside diameter (D): 64mm Ball inside diameter (d): 37.3mm Pin diameter (d1): 12mm

  • la964733kr

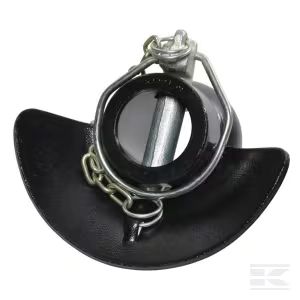

    Lower Link Ball with Guide Cone – Cat.3/3 (17mm Pin)

    £14.02 (+ VAT)

    Lower link ball with guide cone, hook system lower link. Material 16 Mn Cr 5 (chrome-manganese steel, hardened) The ball was coated with e-coating and is therefore 6 times better protected than conventional galvanized balls Category: 3 Ball outside diameter (D): 64mm Ball inside diameter (d): 37.3mm Pin diameter (d1): 17mm

  • 080135006

    Lower Link Hook Repair Kit

    £47.91 (+ VAT)

    Lower Link Hook Repair Kit. Complete repair set Width: 18mm Type: Standard Category: 2

  • 080137006

    Lower Link Hook Repair Kit

    £45.49 (+ VAT)

    Lower Link Hook Repair Kit. Complete repair set Width: 18mm Type: Light/Standard Category: 3

  • lps1050gp

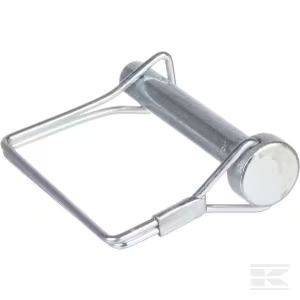

    Square Tube Circlip

    £0.28 – £0.58 (+ VAT)

    Square tube circlip, zinc plated. Pin diameter (A): 6mm 9.7mm 12mm Length (C): 67mm 60mm 75mm Working length (B): 57mm 50mm 67mm

  • tl2903022kr

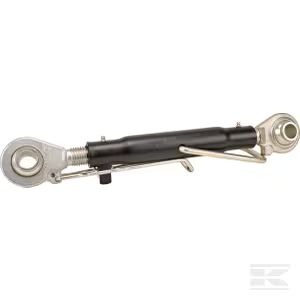

    Toplink Eye/Eye 290mm M30 – Cat.2/2

    £57.19 (+ VAT)

    M30 for tractors up to 75 kW Zinc plated spindles Tube, painted black Connections: Eye/Eye Category by tractor side: 2 Category by machine side: 2 Rod length (B): 290mm Min working length (D): 400mm Max working length (D): 600mm Thread diameter (A) metric: M30 Connection hole diameter by tractor side (C): 25.7mm Connection hole diameter…
