Description

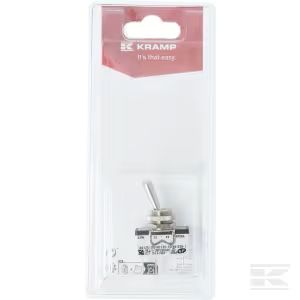

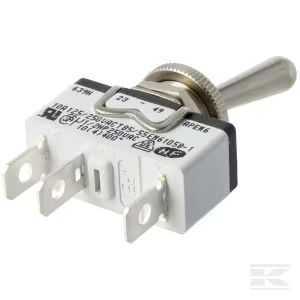

Toggle swith 1-pole, on/off/on function.

Details:

• Temperature range: -20°C to +55°C
• Suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC
• Assembly frame thickness: max. 4.5 mm
• Tightening torque for nut: 1.5 Nm
• Service life: 10,000 cycles at maximum load
• Contacts: silver / nickel alloy
• Supplied with 1 Hex nut and 1 Knurled nut

Function: On/Off

Number of contacts: 1

Hole mounting diameter: 12mm

Type of electric connection: Plug

Rated current: 10A

Application: Vehicle electronics
